Seamless Transition: Transferring SketchUp Files Between Online and Desktop Versions

SketchUp, the powerful 3D modeling platform, provides users with the flexibility to work both online and on the desktop. However, seamlessly switching between the online and desktop versions of SketchUp, especially when it comes to transferring files, can be a challenge. In this article, we will provide a step-by-step guide on how to easily move your SketchUp files from the online version to the desktop and vice versa.

Step 1: Log in to SketchUp Online

Visit the SketchUp website and log in to your account. If you don't have an account, you'll need to create one (this can be done via www.sketchup.com). Once logged in, open your project in the online version of SketchUp. This can be done either from Trimble Connect or by opening a file from your device by clicking on "my device." See the image below:

Image 1

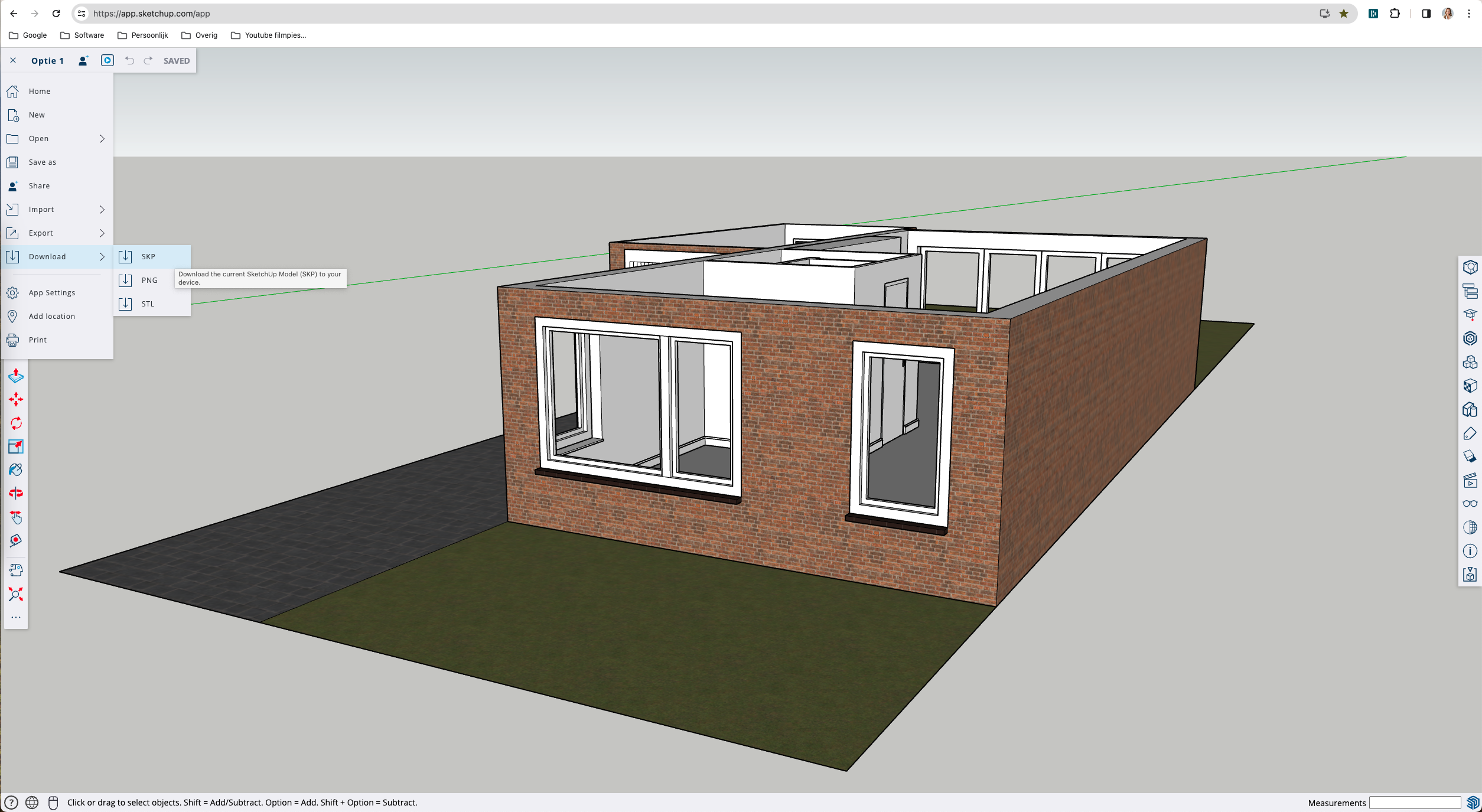

Step 2: Export from SketchUp Web:

- Click on the "File" menu (hamburger menu on the left).

- Select "Download."

- Choose the desired file format (e.g., .SKP for SketchUp files) and save the file to your computer.

Image 2

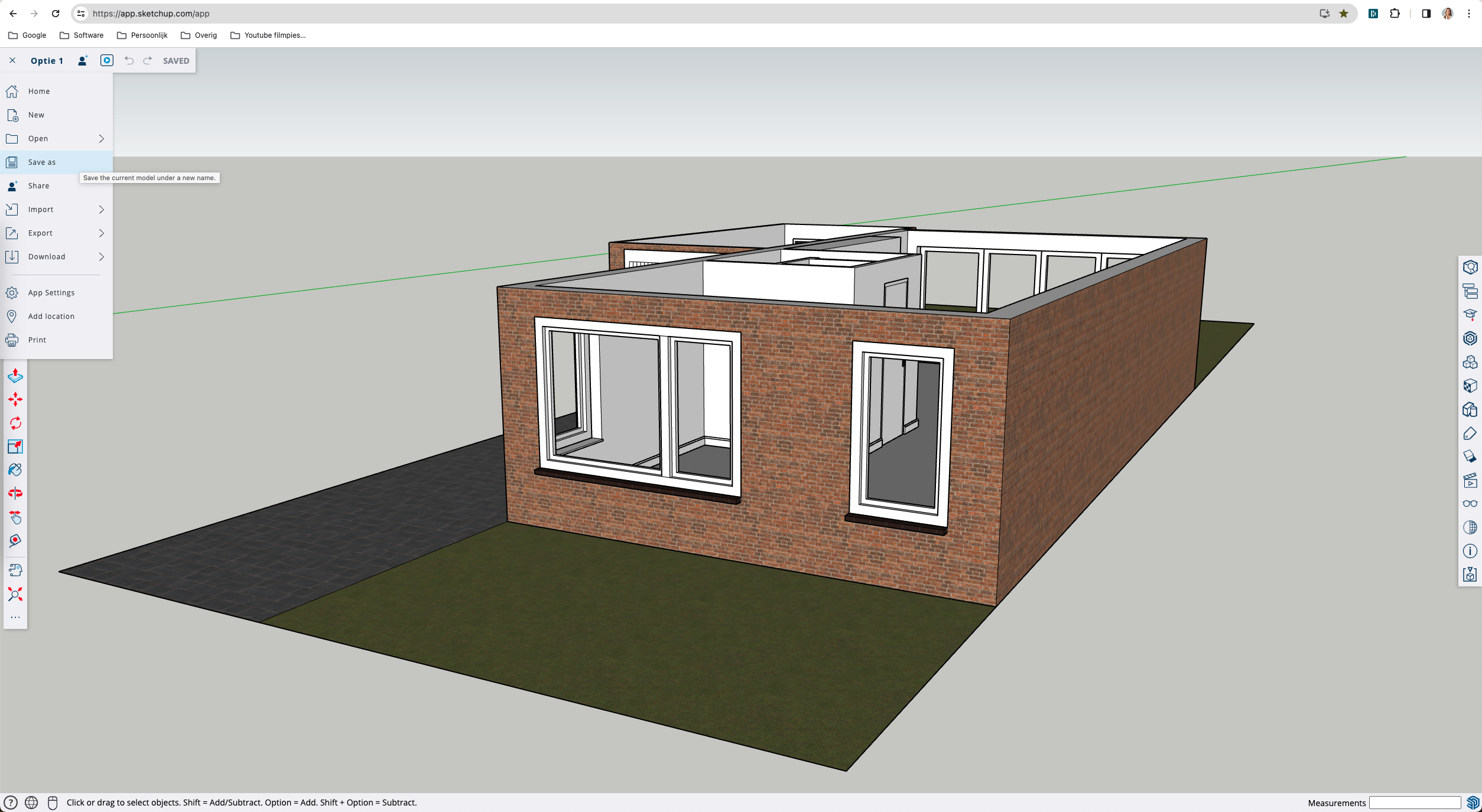

- OR, if you choose "Save as" (in the same menu), you will be directly redirected to the Trimble Connect page.

Image 3

Step 3: Transfer to the Desktop:

Now that you have downloaded the file, it's time to transfer it to your desktop version of SketchUp.

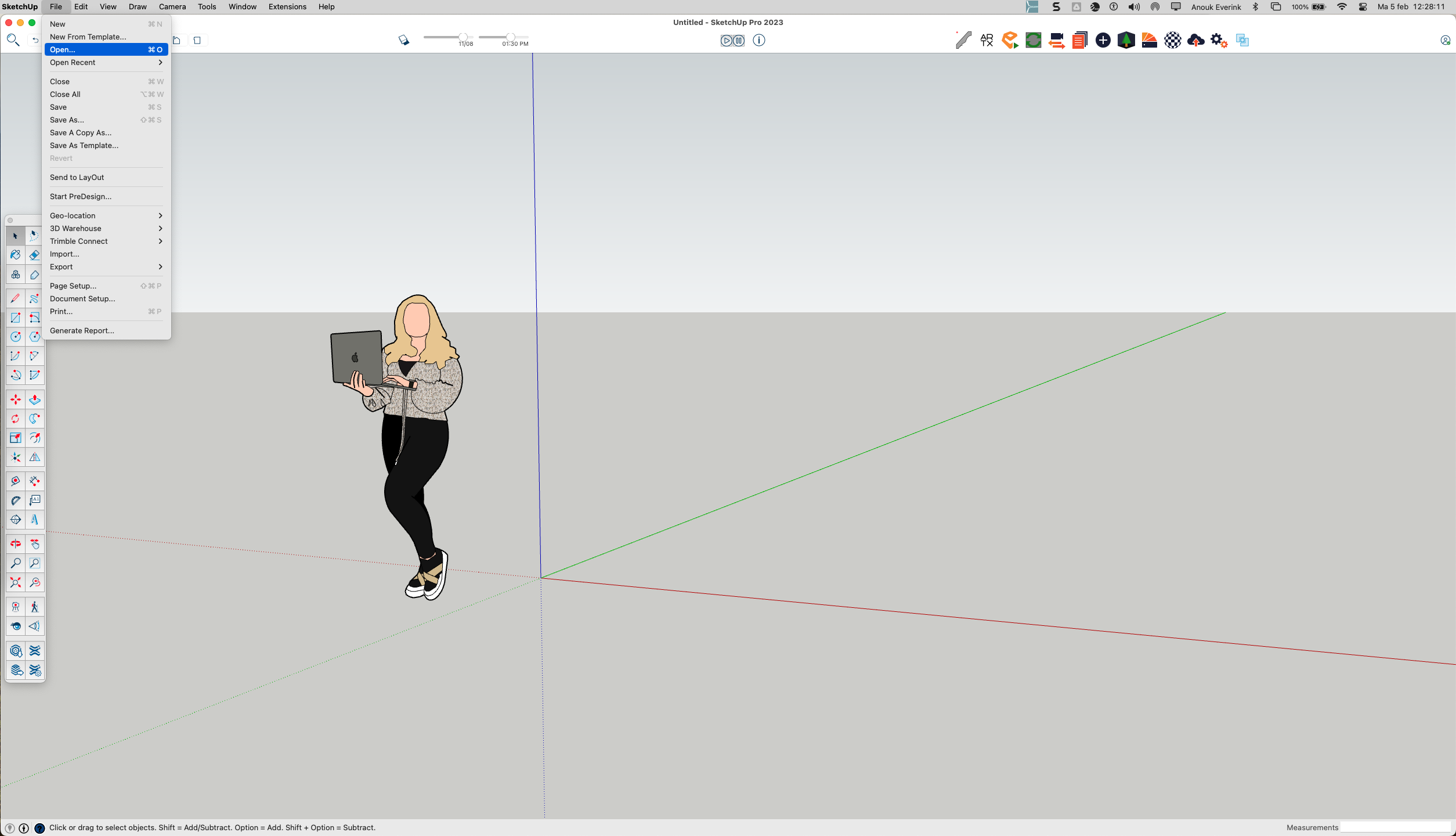

- Open the desktop application of SketchUp.

- Click on "File" and select "Open."

- Navigate to the location where you saved the file and select it.

Image 4

Step 4: Save Changes:

After editing in the desktop version and making changes, save the file:

- Click on "File" and select "Save" or "Save as."

- Ensure that you save the file with the same name or a new name, depending on your preference.

Now you should be able to seamlessly switch between SketchUp Online and the desktop version, easily transferring files without data loss.

Vice Versa (Desktop to Online):

Step 1: Log in to SketchUp Desktop

Open the desktop version of SketchUp (if not downloaded, you can do so here) and log in to your account via www.SketchUp.com.

Step 2: Open Your Project:

Click on "File" and select "Open" to open the desired project. (Refer to Image 4)

Step 3: Export to SketchUp Online:

- Click on "File."

- Select "Save as."

- Choose the desired file format (e.g., .SKP for SketchUp files).

- Save the file and select the location on your computer.

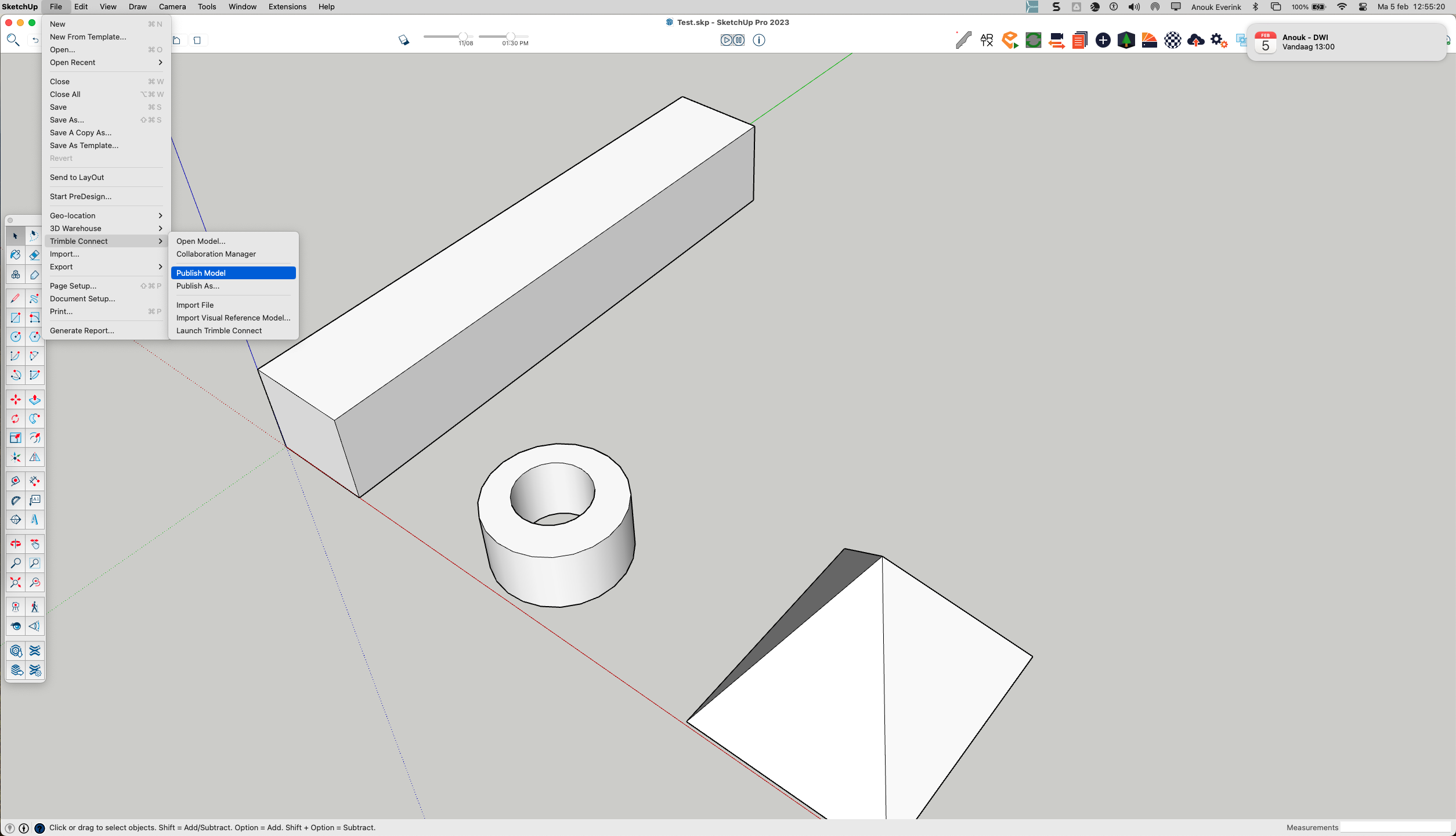

- OR choose "Trimble Connect > Publish model" from the menu.

Image 5

Step 4: Open in SketchUp Online:

- Go to the online version of SketchUp.

- Return to Step 1 at the beginning of this article.

Conclusion:

By following these simple steps, you can effortlessly switch between SketchUp Online and desktop versions, seamlessly transferring your projects without data loss. This enhances flexibility and collaboration within the SketchUp ecosystem.
