Which VR Headsets are supported for Enscape?

Modified on Wed, 16 Jul at 4:23 PM

Mac

Unfortunately, Mac does not support VR.

Windows Which VR headsets are supported?

The Oculus Rift, HTC Vive, HTC Vive Pro 2 are supported for live Virtual Reality. Enscape officially fully supports the HTC Vive Pro 2 and Meta Quest 3. Other headsets, such as the Quest 2, Quest Pro, or a Windows Mixed Reality headset, are NOT officially supported. However, users can get them to work perfectly via a Link Cable or Oculus Air Link. Be aware that these headsets are NOT officially supported.

Enscape is not directly compatible with smartphone VR headsets like Google Cardboard. It is primarily designed for use with more powerful VR headsets connected to a computer. However, there are ways to view Enscape projects on smartphones, but this requires additional steps.

Meta Quest 3 Hardware requirements:

Meta Quest 3 Hardware Requirements

Setting up Meta Quest 3

Settings for using Quest Link (Wired)

Open the Oculus PC app on your Windows computer and log in with your Meta account.
Turn on your headset.
Plug your USB 3 cable into a USB 3.0 port on your PC, then plug the other end into your headset.
Put on your headset, then press / or on your right controller to open your universal menu.
Open Quick Settings.
Select Quest Link.
Select the computer your headset is connected to, then select Launch.

Settings for using Air Link (Wireless)

Open the Oculus PC app on your Windows computer and log in with your Meta account.
Turn on your headset.
Put on your headset and then press / or on your right controller to open your universal menu.
Open Quick Settings.
Select Quest Link.
Select the switch to use Air Link at the top of the Quest Link panel.
Your PC and headset must be connected to the same network for Air Link to work.
Connect the computer to your router via a cable.
Select Launch to start using Air Link.

Enable VR in Enscape

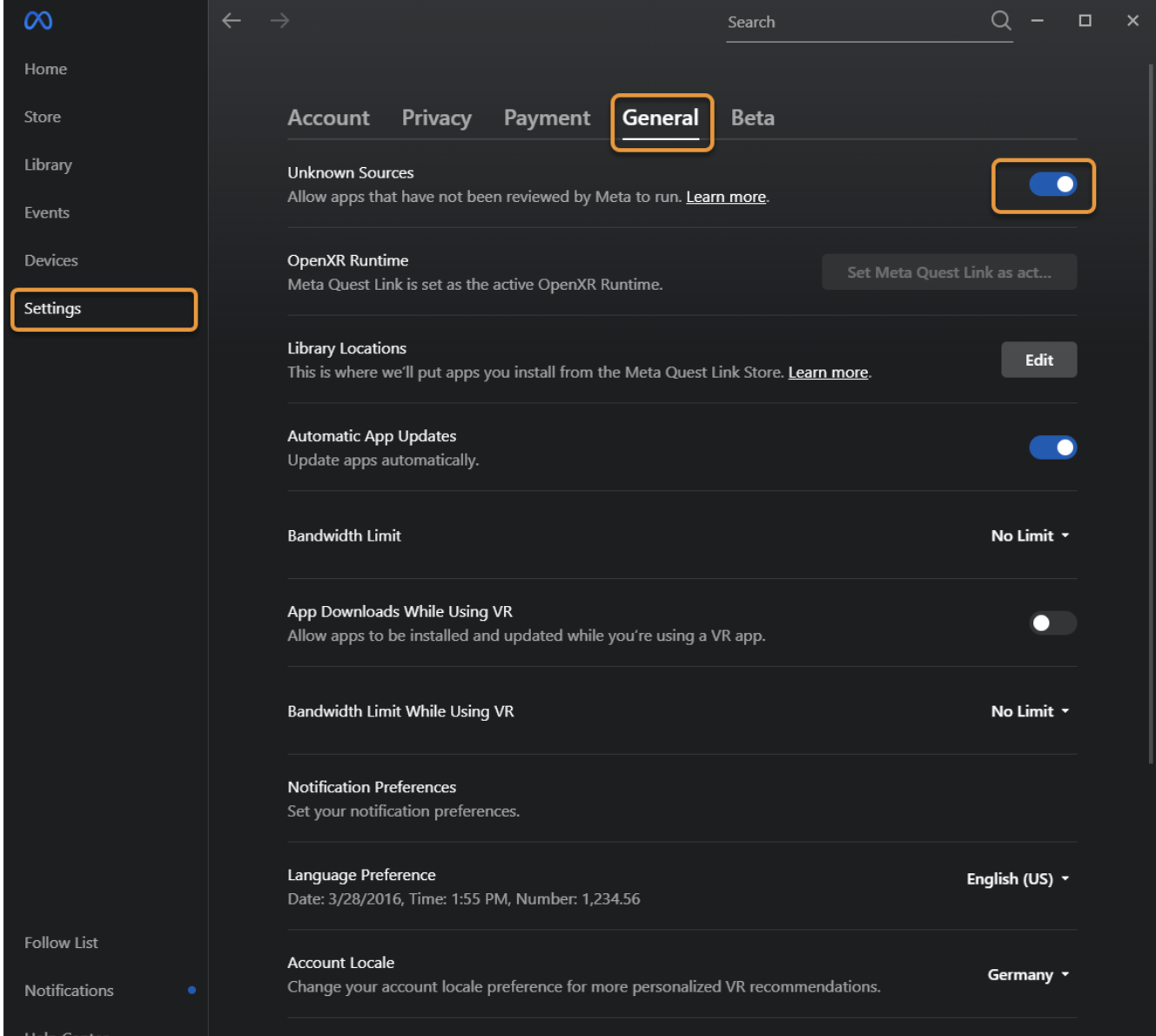

Open the Meta/Oculus App and select Settings. In the General settings section, activate the Unknown Sources option.

Enable Enscape VR mode

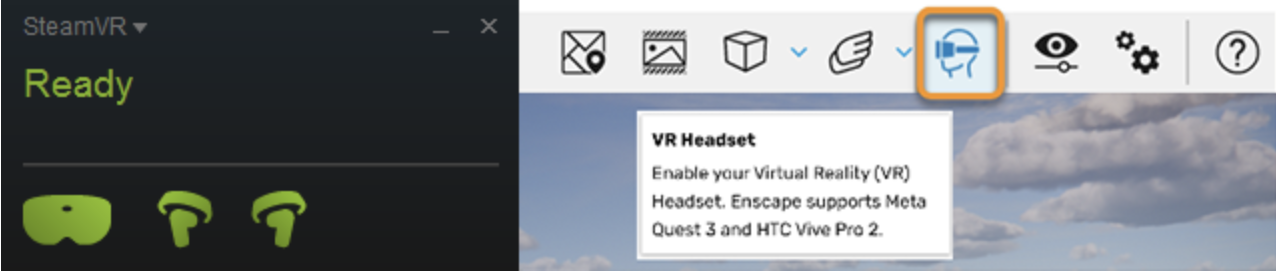

You can now enable Enscape's VR mode via the "Enable VR headset" button on the Enscape ribbon.

To change the resolution of a Meta VR HMD, you can find the options in the Oculus native settings window under Devices -> Graphics Preferences.

HTC Vive 2 Hardware requirements:

HTC Vive Hardware Requirements

Setting up HTC Vive 2 Pro

To use Enscape with the HTC Vive Pro 2, Steam, including SteamVR, must be installed and active. All necessary software is installed by the official Vive Setup.
Once installed, SteamVR will guide you through all the necessary installation steps to prepare your "room scale" VR experience (perform Room Setup).
As soon as SteamVR indicates that everything is "green" and ready for use, you can enable Enscape's VR mode via the "Enable VR headset" button in the Enscape ribbon.

For more detailed information, please refer to:

Enscape Virtual Reality Headset Documentation
